Your build

The Haven

2,670 sq ft3 bed3.5 bath2-Car garage
Build price
Pricing upon request

Contact us for a detailed proposal on this plan.

Roof material

TAMKO Heritage shingle · Weathered Wood

TAMKO Heritage shingle · Weathered Wood

TAMKO Heritage. 130 mph wind warranty, Class A fire. Limited Lifetime. Miami-Dade NOA approved for HVHZ counties.

Dimensional shingleDimensional shingleTAMKO Heritage · Weathered WoodUpon request
Shingle line
Standing seam metalStanding seam metal26-gauge standing seam, 40+ year service life, Florida-approved.Upon request
Concrete tileConcrete tileConcrete s-tile, 50+ year service life. Adds dead load — engineered into truss design.Upon request
Tesla Solar RoofTesla Solar RoofA roof that is your power plant. Solar glass tiles, 25-year warranty, 194 mph wind rating.Upon request

Add solar + battery

Pool & outdoor

Pick a pool design (or skip it), then add the upgrades that make the backyard yours. Pools are permitted separately.

Kitchen

Countertops and cabinet style together set the tone of the room. Door finish, color, and hardware are picked with our designer.

Countertops

Level 1

Included

Level 2

Upon request

Level 3

Upon request

These are curated favorites; our SWFL stone supplier carries hundreds more options. Stock is subject to availability. We’ll walk you through the warehouse to hand-pick the exact slab before fabrication.

Cabinet style

NKBC

Standard inclusion. Door profile (shaker, raised panel) is baked into the named style.

Stocked

Included

Special order

Included · longer lead time

Waypoint Living Spaces

Upon request

Upgrade catalog with hundreds of paint and stain finishes. Final finish lands at the selections meeting.

Browse Waypoint finishes →

Fixed-price contract on a 10,000 sq ft lot. Pricing assumes Lee or Collier County. Other municipalities pass through.

Also available

Everything else we do on the Haven

The configurator above keeps the big decisions visible. These details are part of every build. We tailor them to your taste and budget when we sit down together.

Front entry door

Therma-Tru fiberglass — Florida-rated, paintable, no rot. Pick the series, then color and hinge.

  • Smooth-Star · smooth fiberglass
  • Fiber-Classic · wood-grain fiberglass
  • Classic-Craft · premium fiberglass
  • Pulse · modern flush

Discussed in consultation

Windows

Every PrimeBid home gets impact-rated windows to Florida HVHZ standards, so no shutters are needed. Insulated (Low-E, argon-filled) cuts solar heat gain versus non-insulated. Frame color is picked once below and applies across every window.

PGT WinGuard (vinyl or aluminum)

Standard inclusion. Vinyl non-insulated is the included base spec; vinyl Low-E and aluminum are priced upgrades. Both frames carry Miami-Dade NOA and Florida HVHZ Product Approval. Aluminum offers slimmer sightlines for larger spans; vinyl is the only frame option for double-hung windows.

  • Vinyl, non-insulated
  • Vinyl, insulated Low-E
  • Aluminum, non-insulated
  • Aluminum, insulated Low-E

CGI Sparta (aluminum)

Value-custom alternative. CGI was acquired by MITER / PGT — Sparta (aluminum) replaced the discontinued Sentinel line and remains in production at the Venice and Fort Myers facilities. Miami-Dade NOA, Florida Product Approval, NFRC-rated.

  • Non-insulated
  • Insulated Low-E

Andersen 100 Series (Fibrex composite)

On request for higher-end specs. Fibrex composite frame, impact glazing. Twice as strong as vinyl, blocks thermal transfer ~700× better than aluminum.

  • Upon request

Discussed in consultation

Driveway

Concrete

  • Broom-finish

TriCircle pavers

  • Mega Slate
  • 9×12 Mega Stone
  • Cascade
  • Euro 2PC
  • Euro 3PC
  • 4×8
  • 6×9
  • Flat Brick
  • Tumbled
  • Cobble

Discussed in consultation

Flooring

Porcelain tile or luxury vinyl plank for the living area.*

  • Porcelain tile · Floor & Decor allowance
  • Luxury vinyl plank · Floor & Decor allowance

Discussed in consultation

Appliance tier

Standard package covers range, hood, dishwasher, microwave, and fridge. Or take an allowance and pick your own appliances during the build.

  • Standard appliances
  • Allowance only · select your own during build

Discussed in consultation

Lawn & landscaping

Sod, irrigation, mulch, and entry-zone plantings come standard. Pick the grass; landscaping is either the standard included package or an open allowance to pick plants from a nursery during the build.

  • Bahia sod
  • Floratam St. Augustine sod
  • Standard included landscaping
  • Select your own during build from nursery

Discussed in consultation

Want to walk through these together?

Book a sit-down with a PrimeBid project lead. We’ll go through your picks above and the categories on this page in one conversation.

Overview

About the Haven

Two-story raised coastal plan built around an island-basement foundation, the foundation type FEMA recognizes for VE-zone construction where wave action and storm surge are expected. The main living level sits above the local design flood elevation, with 2,670 conditioned sq ft holding a master suite, two guest suites, three full baths, a powder room, study, and a vaulted great room that opens to the kitchen and dining. The lower level holds a 1,193 sq ft two-car garage and flood-vented storage rooms designed to release water during a surge event without loading the structure. An interior elevator connects the lower foyer to the main level. The rear patio runs 58'-10" across the back of the home with a built-in outdoor kitchen, and two front balconies flank the entry stair. Engineered for Florida HVHZ wind requirements per structural; impact-rated openings and Florida Product Approval components per spec.

  • Island-basement foundation suited to FEMA VE coastal flood zones
  • Main living level set above the design flood elevation
  • Elevator from the lower foyer to the main level
  • Vaulted great room (12'-0" to 15'-8") with wet bar and fireplace
  • 58'-10" rear patio with built-in outdoor kitchen, grille, and sink
  • Two front balconies and a 13'-8" entry volume
  • Master suite plus two guest suites, each with a private bath
  • Designed for Florida HVHZ wind loads per structural engineering

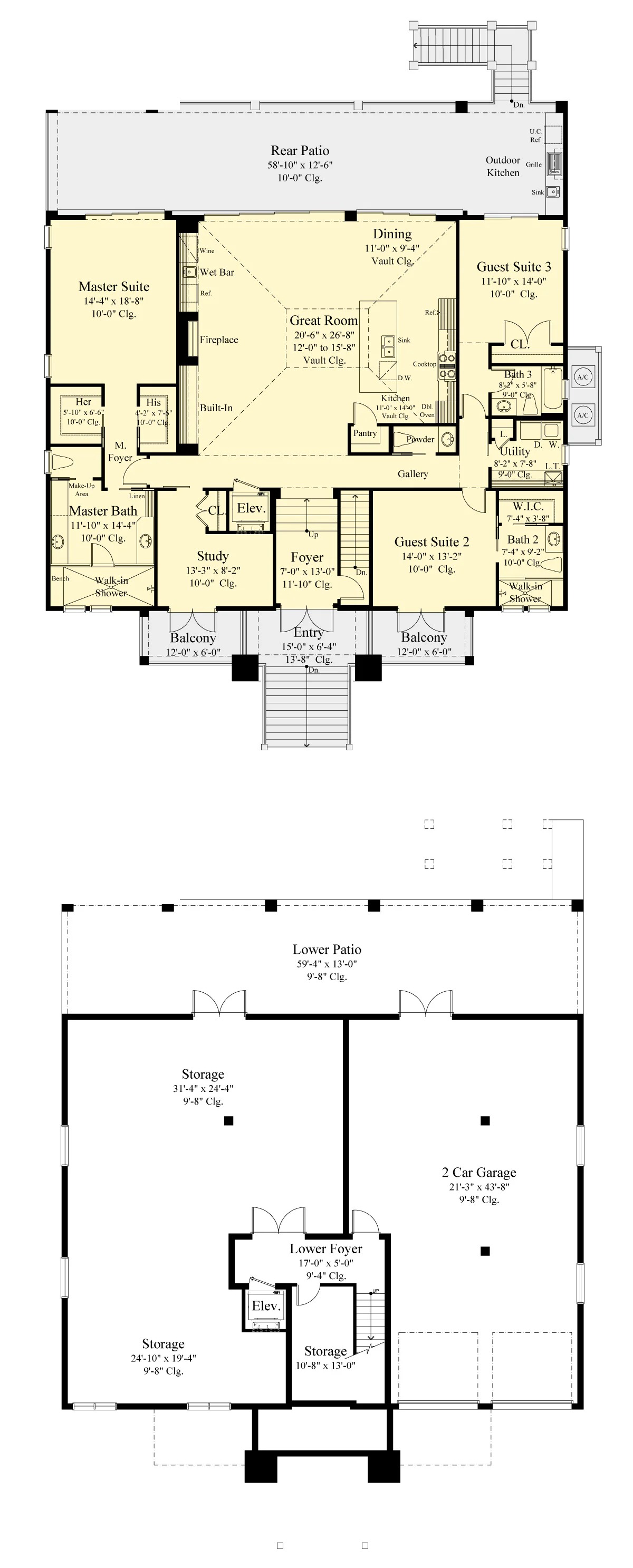

Floor plan

Layout

Includes

  • Main living level (above design flood elevation):
  • Great room 20'-6" x 26'-8" with 12'-0" to 15'-8" vault
  • Kitchen 11'-0" x 14'-0" with vault ceiling, double oven, walk-in pantry
  • Dining 11'-0" x 9'-4" with vault ceiling
  • Wet bar with wine refrigerator and built-in adjacent to great room
  • Fireplace and built-in along great room wall
  • Master suite 14'-4" x 18'-8" with his and hers walk-in closets
  • Master bath 11'-10" x 14'-4" with dual vanities, walk-in shower, make-up area
  • Guest suite 2 14'-0" x 13'-2" with private bath and walk-in closet
  • Guest suite 3 11'-10" x 14'-0" with private bath
  • Study 13'-3" x 8'-2" off the foyer
  • Foyer 7'-0" x 13'-0" with 11'-10" ceiling, entry volume 13'-8"
  • Utility room 8'-2" x 7'-8" with laundry tub
  • Powder room off the gallery
  • Rear patio 58'-10" x 12'-6" with outdoor kitchen, grille, sink, under-counter refrigerator
  • Two front balconies, each 12'-0" x 6'-0"
  • Elevator from lower foyer to main level
  • Lower level (island basement):
  • 2-car garage 21'-3" x 43'-8" (1,193 sq ft) with 9'-8" ceiling
  • Storage room 31'-4" x 24'-4" with 9'-8" ceiling
  • Storage room 24'-10" x 19'-4" with 9'-8" ceiling
  • Storage room 10'-8" x 13'-0"
  • Lower foyer 17'-0" x 5'-0" with elevator landing and stair to main level
  • Lower patio 59'-4" x 13'-0" with 9'-8" ceiling
  • Enclosure designed as flood-vented break-away space per VE-zone requirements

Room highlights

Inside the Haven

Master Suite

  • 14'-4" x 18'-8" bedroom with 10-foot ceiling
  • His and hers walk-in closets
  • Private bath with dual vanities and walk-in shower
  • Make-up area and bench
  • Located on its own side of the home opposite the guest suites

Great Room, Kitchen, Dining

  • 20'-6" x 26'-8" great room under a 12'-0" to 15'-8" vault
  • Wet bar with wine refrigerator and built-in
  • Fireplace and built-in along the great room wall
  • Kitchen with vault ceiling, island, double oven, walk-in pantry
  • Dining under matching vault ceiling

Guest Suites

  • Guest suite 2 14'-0" x 13'-2" with private bath and walk-in shower
  • Guest suite 3 11'-10" x 14'-0" with private bath
  • Both opposite the master for privacy
  • Each opens off the gallery

Outdoor Living

  • 58'-10" rear patio under roof
  • Built-in outdoor kitchen with grille, sink, under-counter refrigerator
  • Two front balconies flanking the entry
  • Lower patio 59'-4" wide at grade

Coastal / VE-Zone Construction

  • Island-basement foundation
  • Main living level elevated above the design flood elevation
  • Lower-level walls designed as flood-vented break-away enclosure
  • Elevator from lower foyer to main level
  • Designed for Florida HVHZ wind loads per structural
  • Impact-rated openings and Florida Product Approval components per spec

Specifications

The Haven by the numbers

Plan Areas

Total Living (Main)
2,670 sq ft
Garage
1,193 sq ft
Ground Floor (Storage + Lower Foyer)
1,475 sq ft
Rear Patio
771 sq ft
Lower Level Porch
771 sq ft
Balcony
148 sq ft
Entry
128 sq ft
Total Area
7,156 sq ft

Layout

Bedrooms
3
Full Baths
3
Half Baths
1
Stories
1 living + lower
Study
Yes
Elevator
Yes
Outdoor Kitchen
Yes

Building

Width
59'-4"
Depth
66'-0"
Building Height
36'-5"
Foundation
Island Basement
Exterior Wall
Concrete Block
Exterior Finish
Stucco
Roof Pitch
6/12

Garage & Parking

Garage Size
21'-3" x 43'-8"
Configuration
2-Car, Front Load

Coastal Suitability

FEMA Flood Zone
Suited to VE / AE coastal
Wind Design
Florida HVHZ per structural
Openings
Impact-rated per spec
