Your build
Contact us for a detailed proposal on this plan.
TAMKO Heritage shingle · Weathered Wood
TAMKO Heritage. 130 mph wind warranty, Class A fire. Limited Lifetime. Miami-Dade NOA approved for HVHZ counties.
Dimensional shingleTAMKO Heritage · Weathered WoodUpon request
Standing seam metal26-gauge standing seam, 40+ year service life, Florida-approved.Upon request
Concrete tileConcrete s-tile, 50+ year service life. Adds dead load — engineered into truss design.Upon request
Tesla Solar RoofA roof that is your power plant. Solar glass tiles, 25-year warranty, 194 mph wind rating.Upon requestAdd solar + battery
Pick a pool design (or skip it), then add the upgrades that make the backyard yours. Pools are permitted separately.
Countertops and cabinet style together set the tone of the room. Door finish, color, and hardware are picked with our designer.
Countertops
These are curated favorites; our SWFL stone supplier carries hundreds more options. Stock is subject to availability. We’ll walk you through the warehouse to hand-pick the exact slab before fabrication.
Cabinet style
NKBC
Standard inclusion. Door profile (shaker, raised panel) is baked into the named style.
Waypoint Living Spaces
Upon requestUpgrade catalog with hundreds of paint and stain finishes. Final finish lands at the selections meeting.
Browse Waypoint finishes →Fixed-price contract on a 10,000 sq ft lot. Pricing assumes Lee or Collier County. Other municipalities pass through.
Also available
The configurator above keeps the big decisions visible. These details are part of every build. We tailor them to your taste and budget when we sit down together.
Therma-Tru fiberglass — Florida-rated, paintable, no rot. Pick the series, then color and hinge.
Discussed in consultation
Every PrimeBid home gets impact-rated windows to Florida HVHZ standards, so no shutters are needed. Insulated (Low-E, argon-filled) cuts solar heat gain versus non-insulated. Frame color is picked once below and applies across every window.
PGT WinGuard (vinyl or aluminum)
Standard inclusion. Vinyl non-insulated is the included base spec; vinyl Low-E and aluminum are priced upgrades. Both frames carry Miami-Dade NOA and Florida HVHZ Product Approval. Aluminum offers slimmer sightlines for larger spans; vinyl is the only frame option for double-hung windows.
CGI Sparta (aluminum)
Value-custom alternative. CGI was acquired by MITER / PGT — Sparta (aluminum) replaced the discontinued Sentinel line and remains in production at the Venice and Fort Myers facilities. Miami-Dade NOA, Florida Product Approval, NFRC-rated.
Andersen 100 Series (Fibrex composite)
On request for higher-end specs. Fibrex composite frame, impact glazing. Twice as strong as vinyl, blocks thermal transfer ~700× better than aluminum.
Discussed in consultation
Concrete
TriCircle pavers
Discussed in consultation
Porcelain tile or luxury vinyl plank for the living area.*
Discussed in consultation
Standard package covers range, hood, dishwasher, microwave, and fridge. Or take an allowance and pick your own appliances during the build.
Discussed in consultation
Sod, irrigation, mulch, and entry-zone plantings come standard. Pick the grass; landscaping is either the standard included package or an open allowance to pick plants from a nursery during the build.
Discussed in consultation
Want to walk through these together?
Book a sit-down with a PrimeBid project lead. We’ll go through your picks above and the categories on this page in one conversation.
Overview

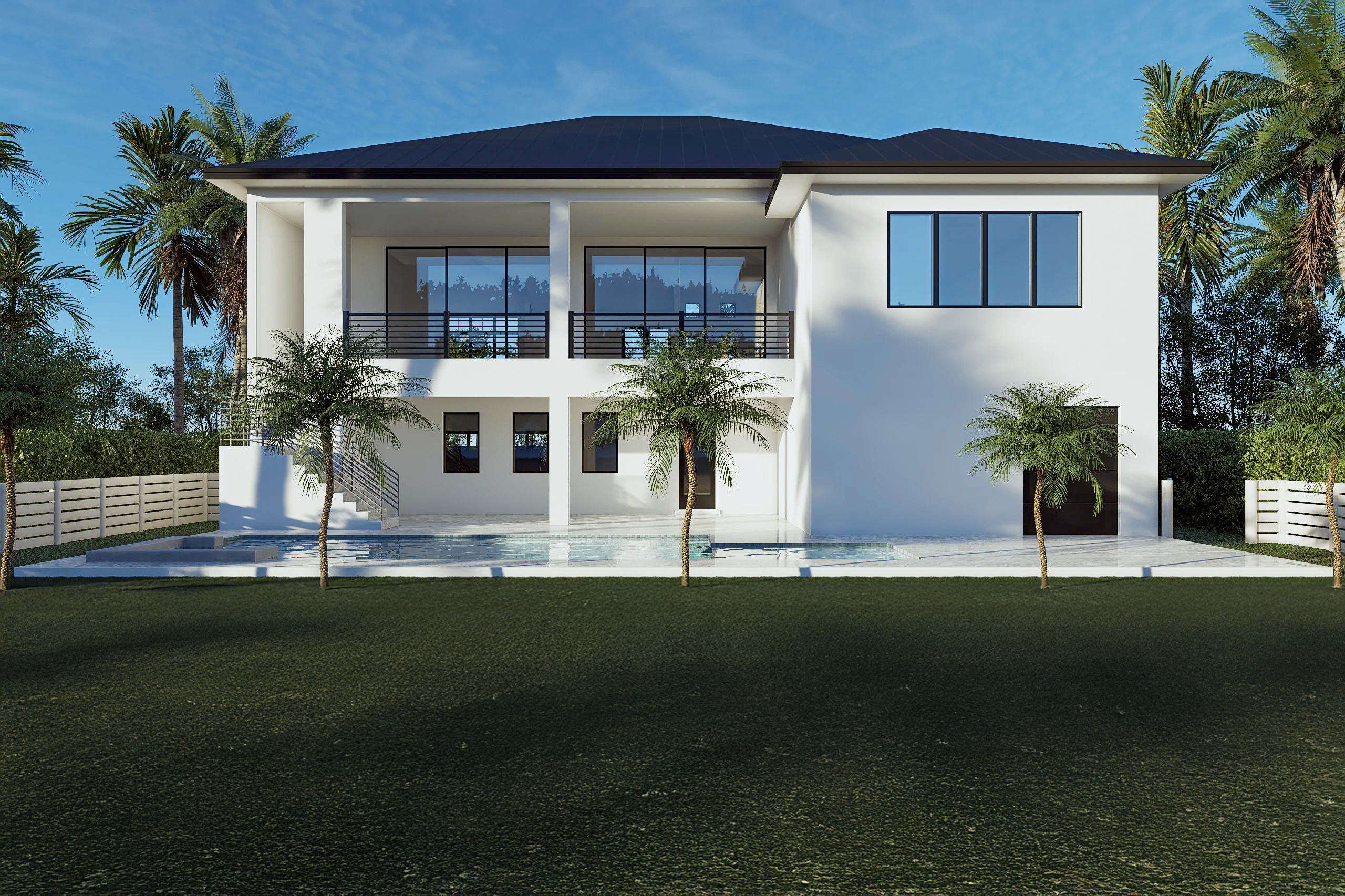

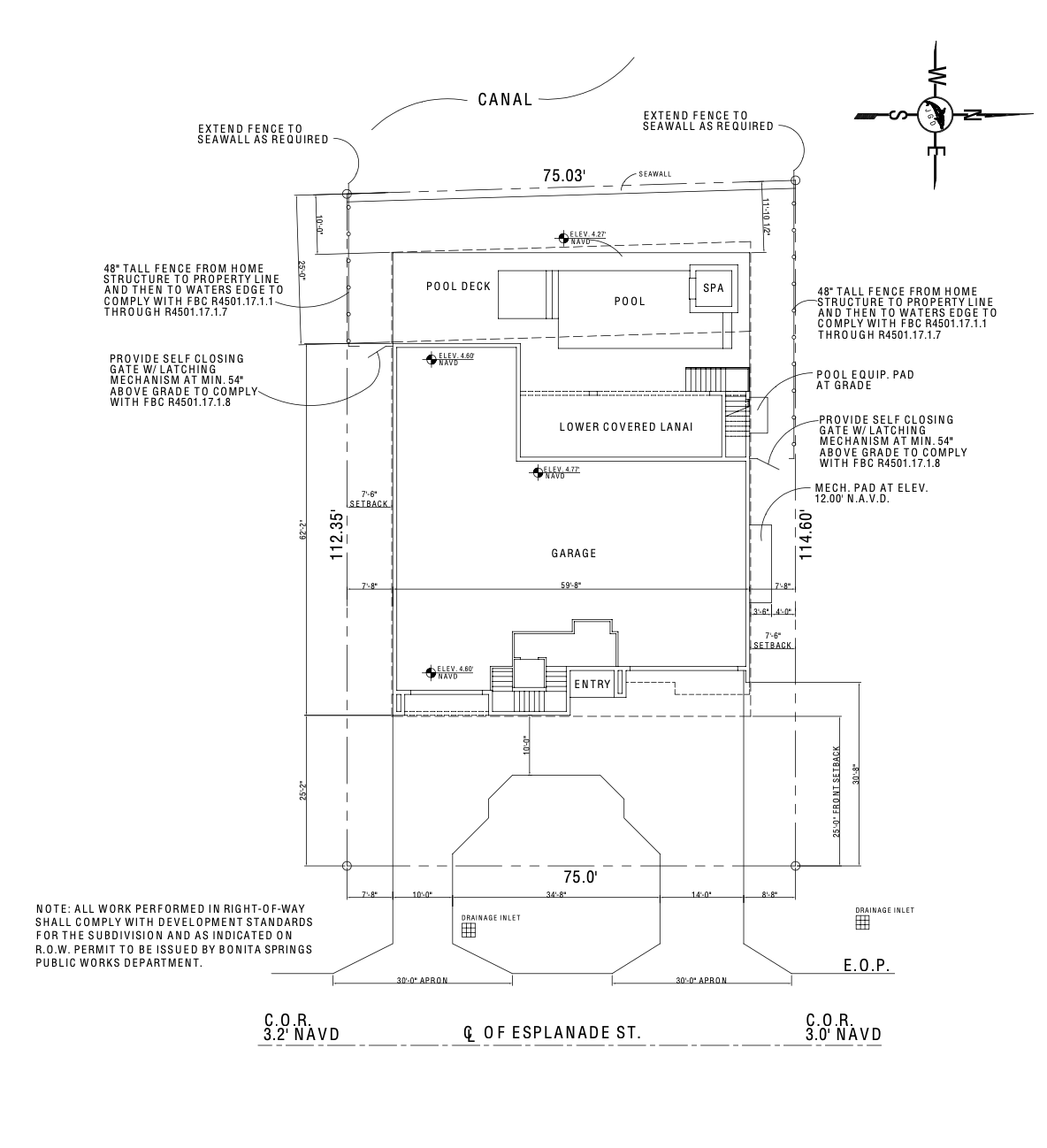

Two-story raised coastal plan engineered for a Coastal A flood zone on a canal-front lot in Imperial Shores, Bonita Springs (60 ft of frontage on Esplanade Street, 112 ft deep). The building footprint is 59'-8" wide × 46'-8" deep (2,786 sq ft rectangular), with overhangs extending to 3,137 sq ft total under roof per the engineered site plan. The ground floor is a 2,469 sq ft flood-vented garage and 378 sq ft lower covered lanai at FFE 4.77' NAVD; a piling structure carries the main living level to FFE 16.44' NAVD, above the design flood elevation. An interior elevator connects the two levels. The main level holds 2,985 sq ft of A/C living (a 2,763 sq ft floor plus a 222 sq ft foyer), laid out as an owner's suite, three additional en-suite guest bedrooms, a powder bath, and an open kitchen, dining, and great room that flow out to a 392 sq ft covered upper lanai with built-in summer kitchen. Total area under roof is 6,308 sq ft. Outside, the lower deck wraps a 1,212 sq ft pool deck with in-ground pool and spa, and a private dock with boat lift gives direct Gulf access with no bridges to open water. Designed to Florida Building Code 8th Edition with ASCE 7-22 design loads, 170 MPH basic wind speed, Exposure C, and Section R322 flood-resistant construction. Standing seam aluminum coastal-grade roof, impact-rated openings per schedule, R-20 spray-foam insulation throughout, two-story CMU + wood frame. Building permit approved.

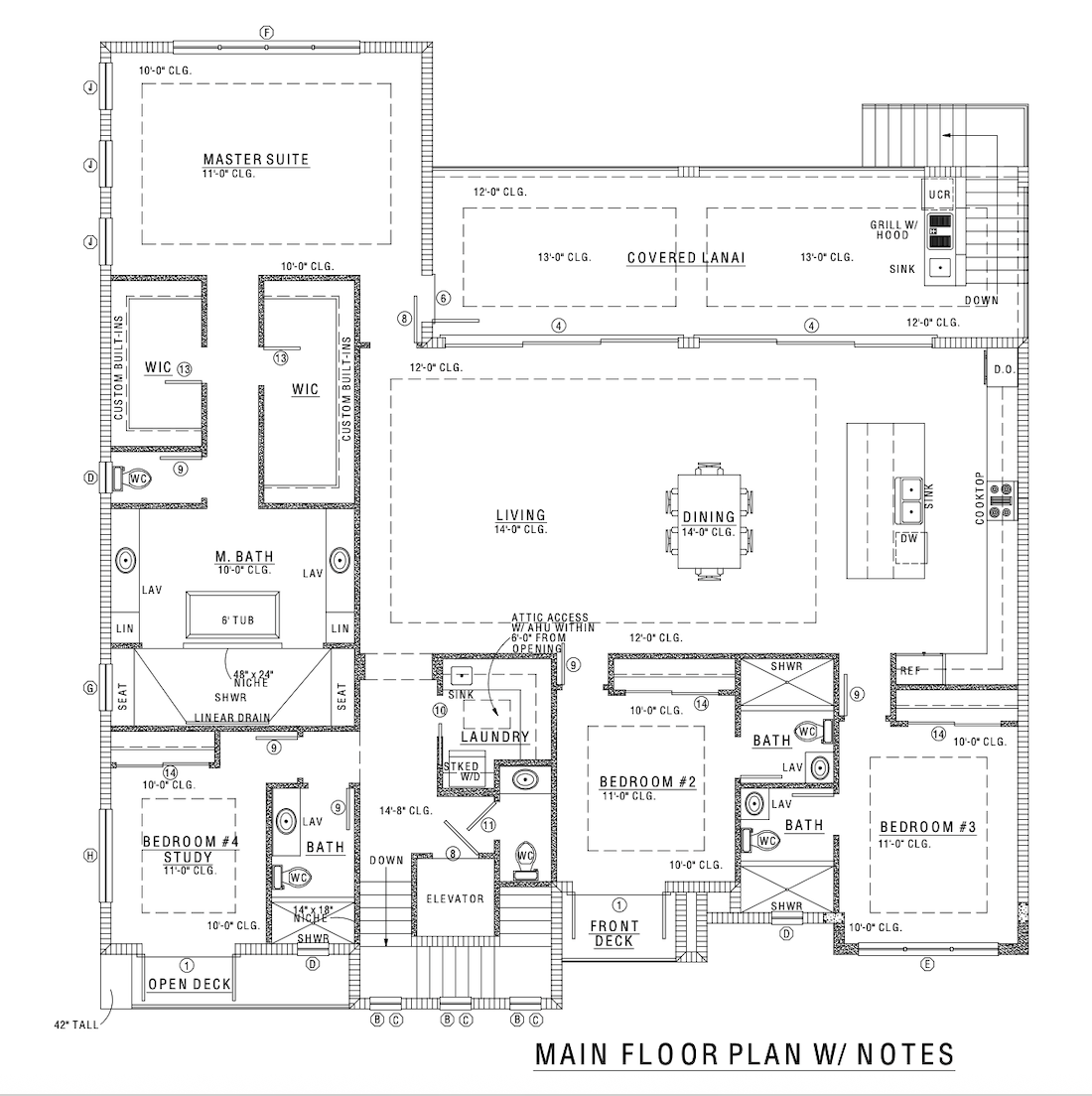

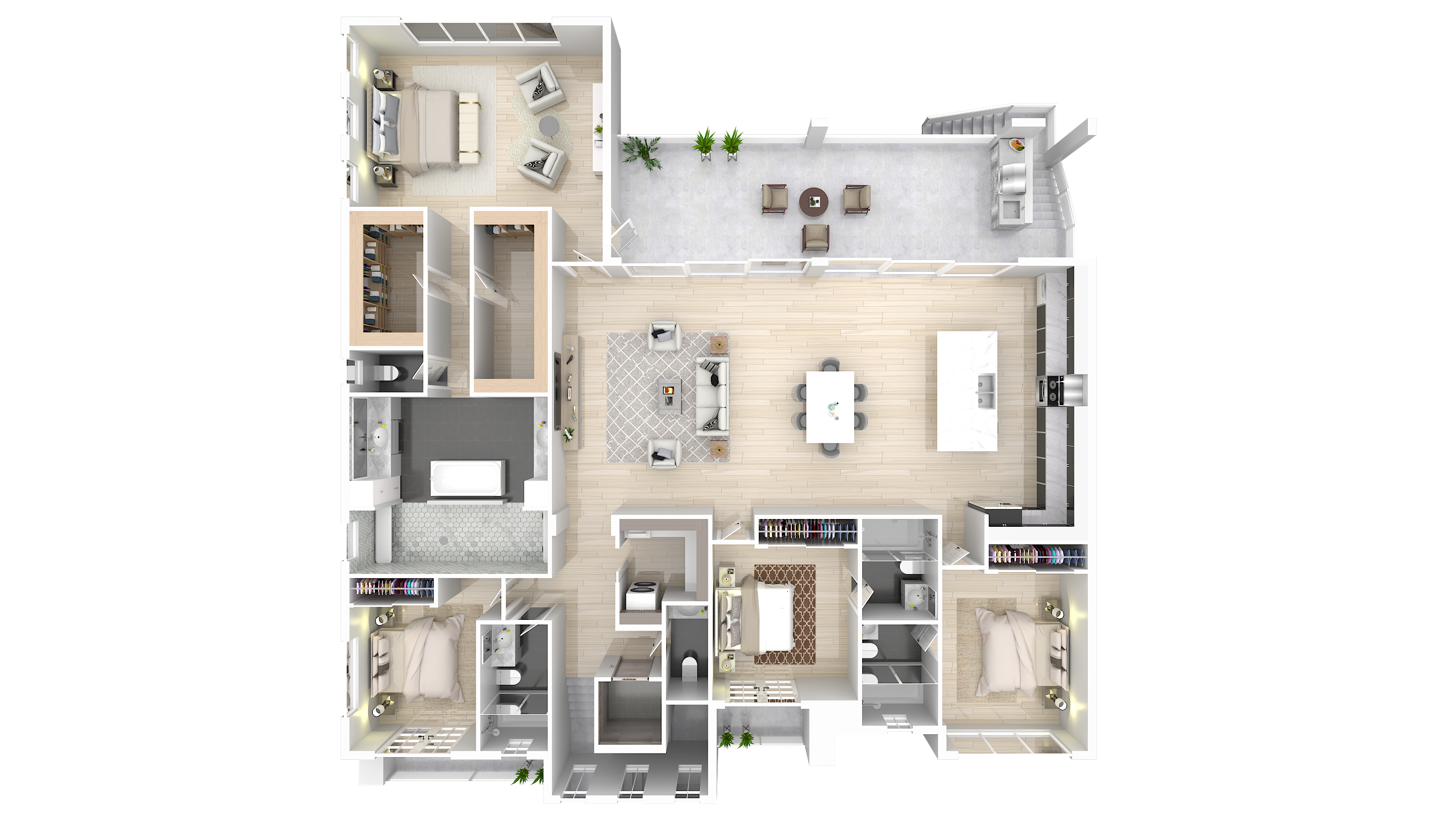

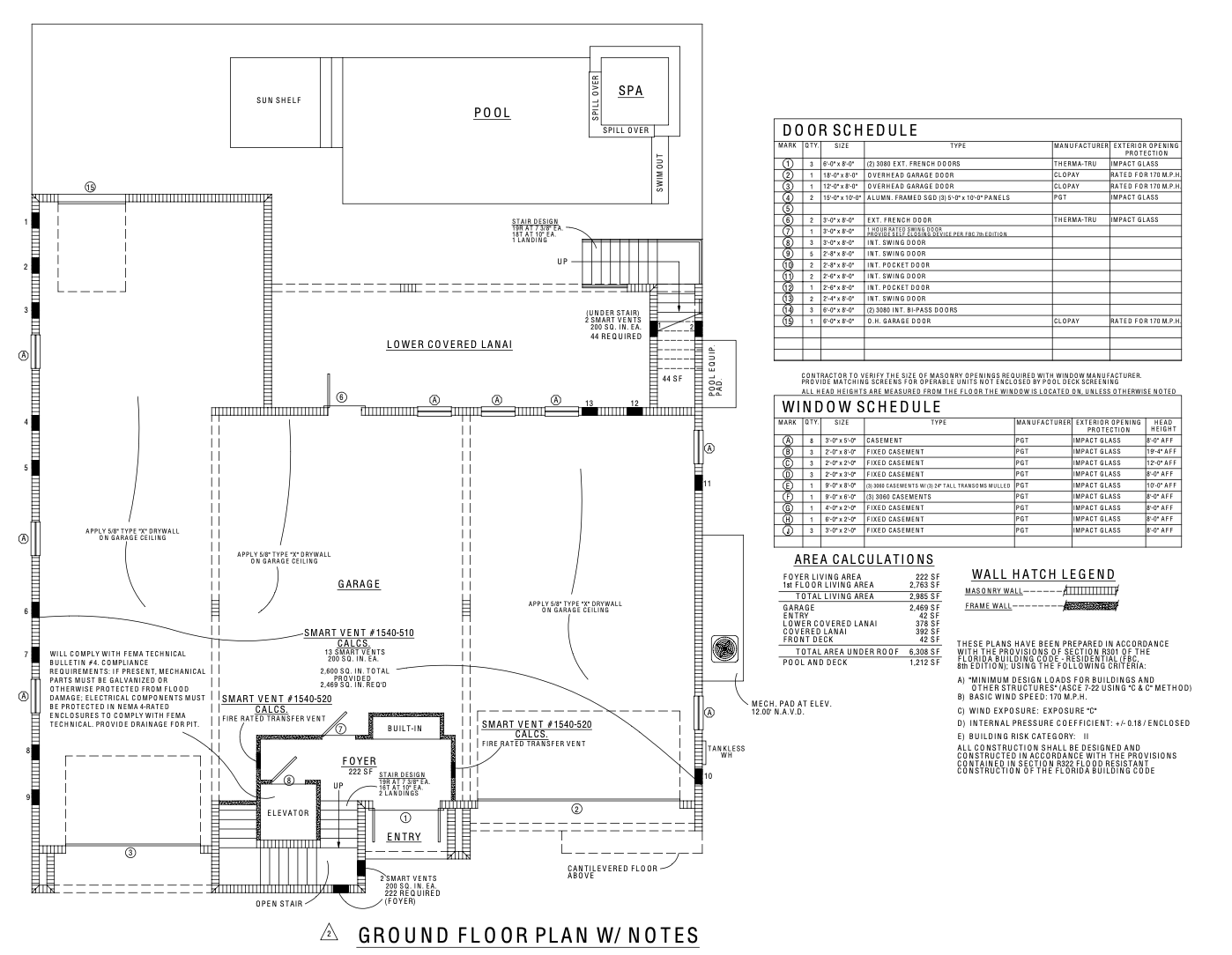

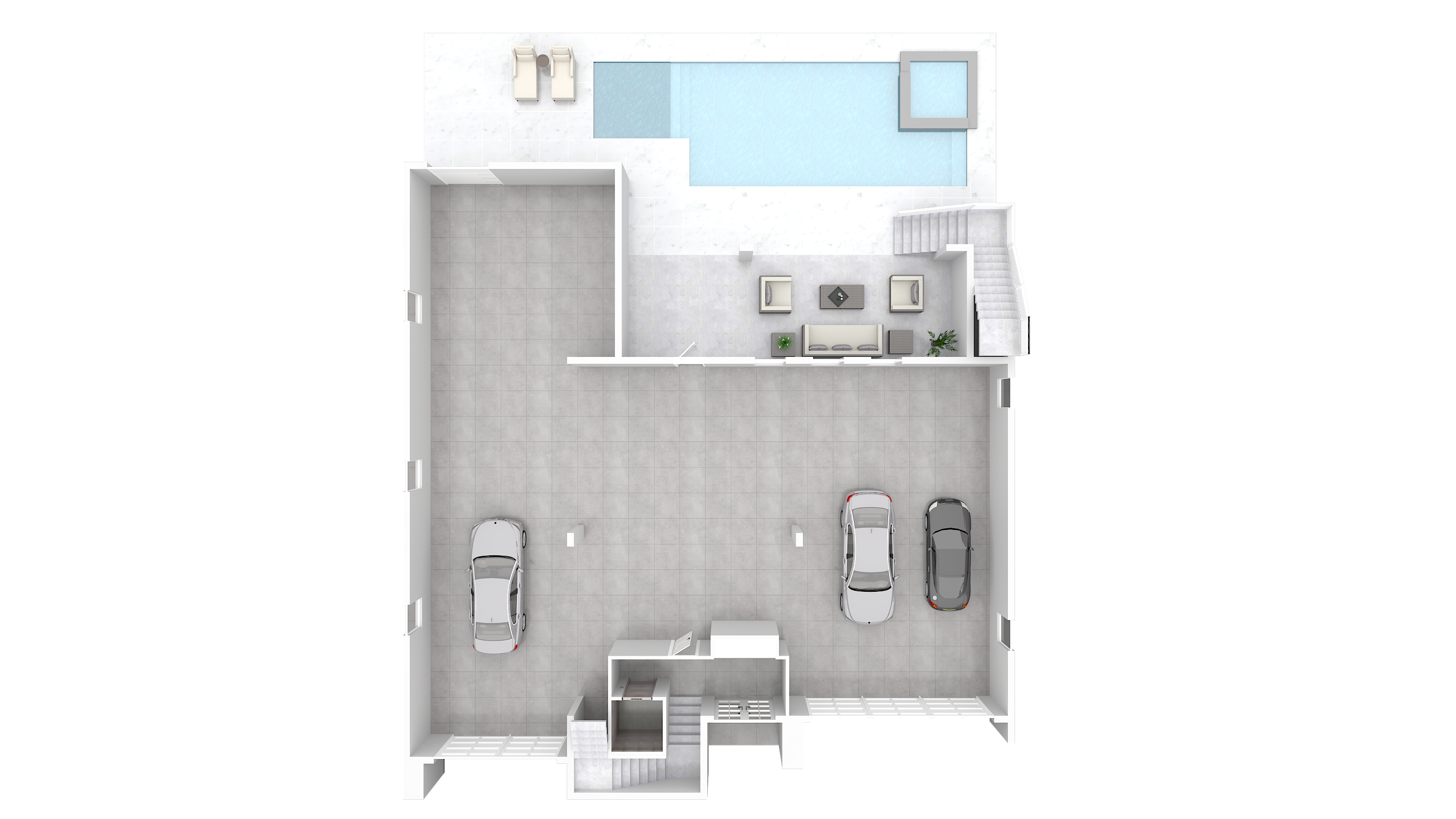

Floor plan
Room highlights
Specifications
Tell us about your build and grab a time for a quick design call with our team.
